Hands on Reactive Spring with Redis Cache and Docker support

The concept of reactive programming enables more responsive and scalable programmes by handling asynchronous data streams.

It emphasises on representing data flows as ongoing streams of events so that systems may respond and adjust in real time to shifting circumstances. Reactive programming provides a potent tool for handling complicated interactions and upholding fluid user experiences by utilising the ideas of event-driven and declarative programming.

Its method is particularly useful in situations where event-driven structures and effective handling of asynchronous activities are critical, such as in contemporary web applications and real-time data processing systems.

Project Reactor by Spring is a completely non-blocking foundation with built-in back-pressure support.

It serves as the structural core of the Spring ecosystem’s reactive stack and is included into initiatives like Spring WebFlux, Spring Data, and Spring Cloud Gateway.

While attempting to maintain functional simplicity, this demonstration will serve as a proof-of-concept (POC) for creating reactive REST endpoints supported by a PostgreSQL database and using Redis as a cache, all with the support of Docker containers.

In this app we will be using:

Java version 17.
Spring Boot version 3.1.2.

And the following dependencies:

Continuing with the movie theme from previous articles, we start by developing our data model.

Note: Although I’m using records, you are still welcome to utilise classes if you’d like.

Next, let’s build our reactive repository:

Now, let’s create our service:

To better understand how to use the Mono and Flux publishers, I suggest reading this insightful article.

It’s time to create our movie rest controller:

Then, we need a starting script to persist a set of movies in our database. You can use the script in the main class or any configuration class.

Note: The save operation won’t populate our cache, only the findAll will.

As the next part of this demo, some configurations need to take place:

Redis configuration:

we need a reactive Redis template to persist our movies:

Postgres database configuration:

In the resource folder, we create a schema.sql file.

The init script is used at the startup in order to create a table for our movies.

Docker compose configuration:

In our compose.yaml file, we define our databases’ services.

Now that we’ve finished building our reactive cached endpoint, let’s put it to use:

SpringReactiveRedisDocker

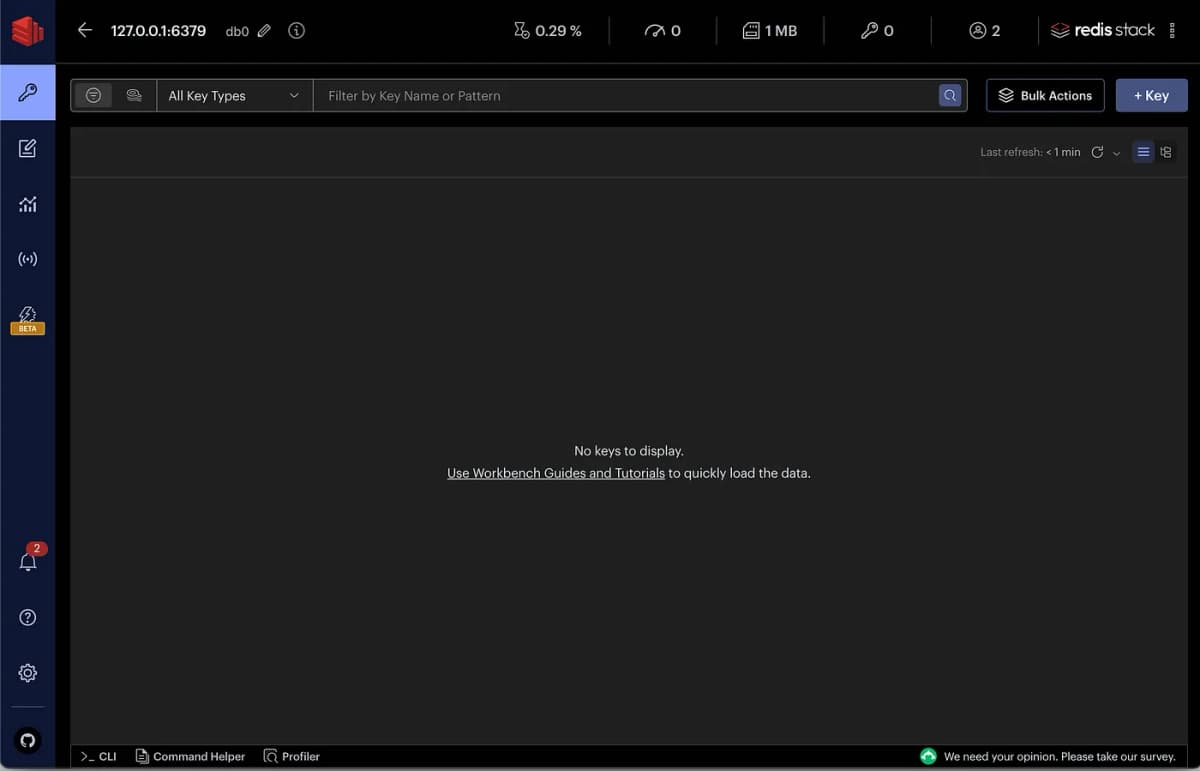

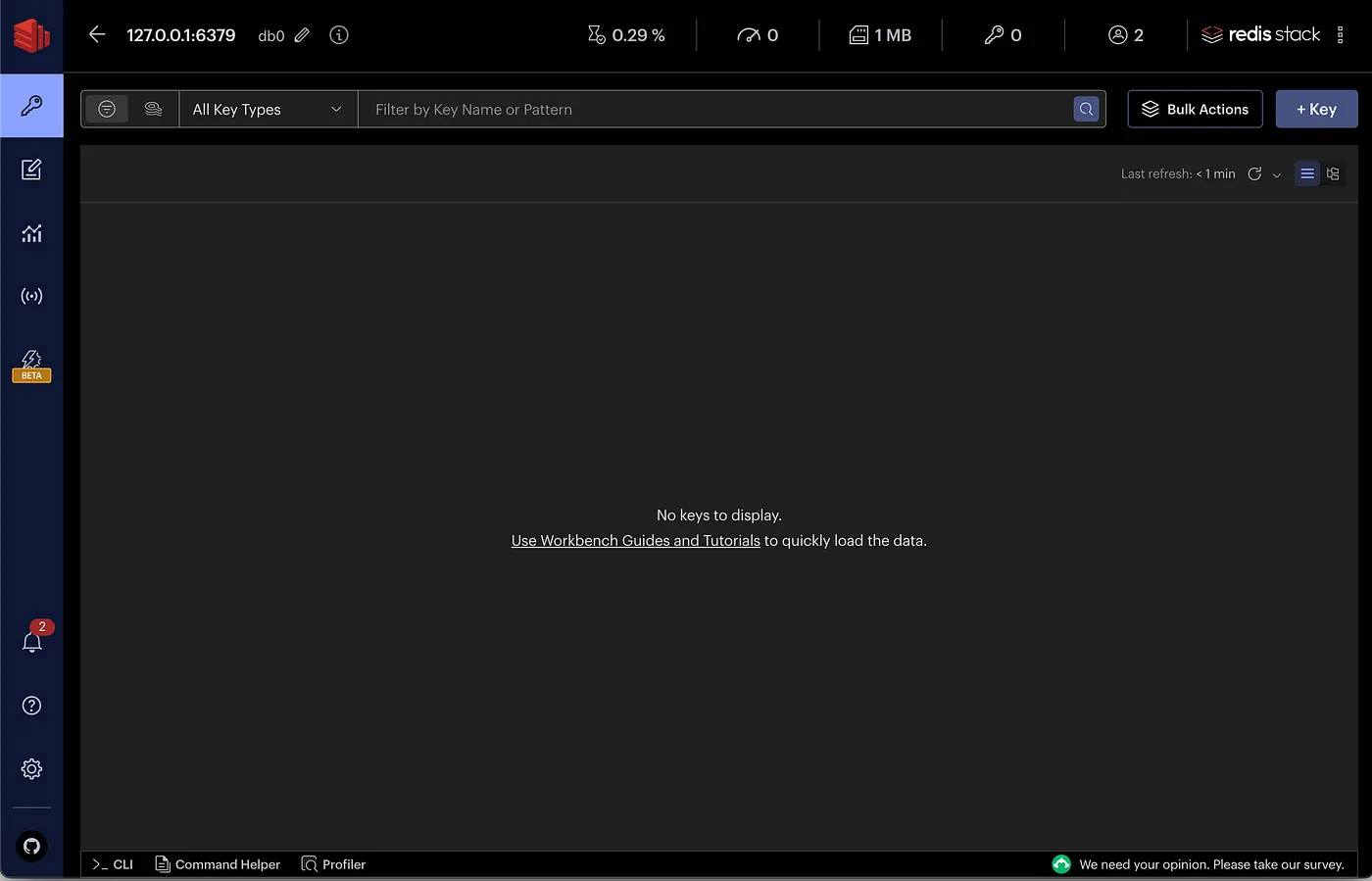

Our cache is empty, let’s run the findAll op to fill it up with movies from the PostgreSQL database:

SpringReactiveRedisDocker

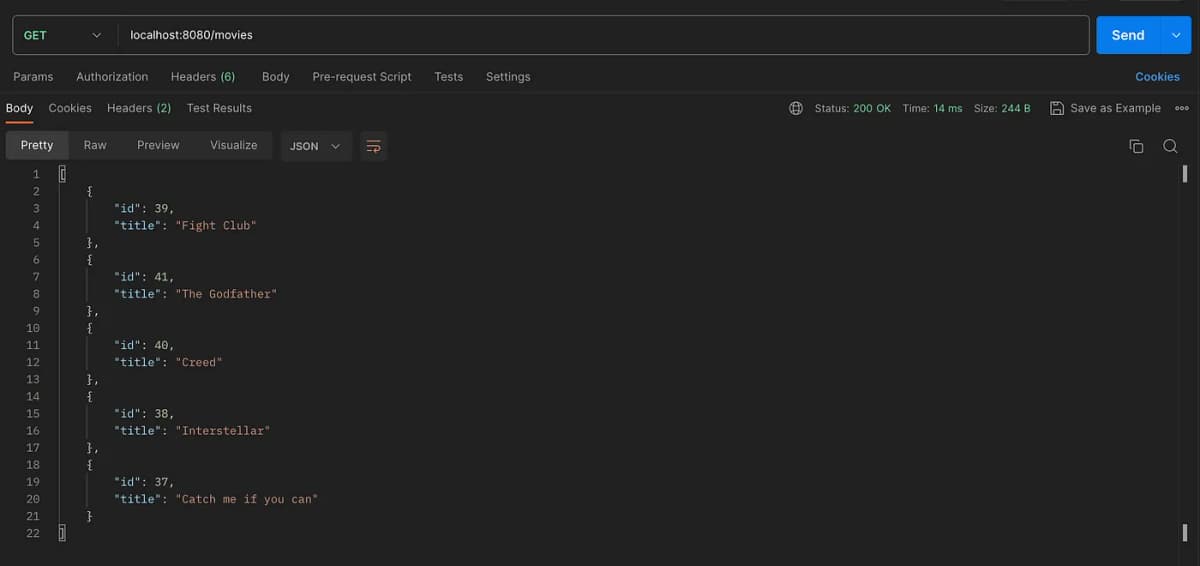

The findAll is successfully returning the list of persisted movies. Let’s check our cache:

SpringReactiveRedisDocker

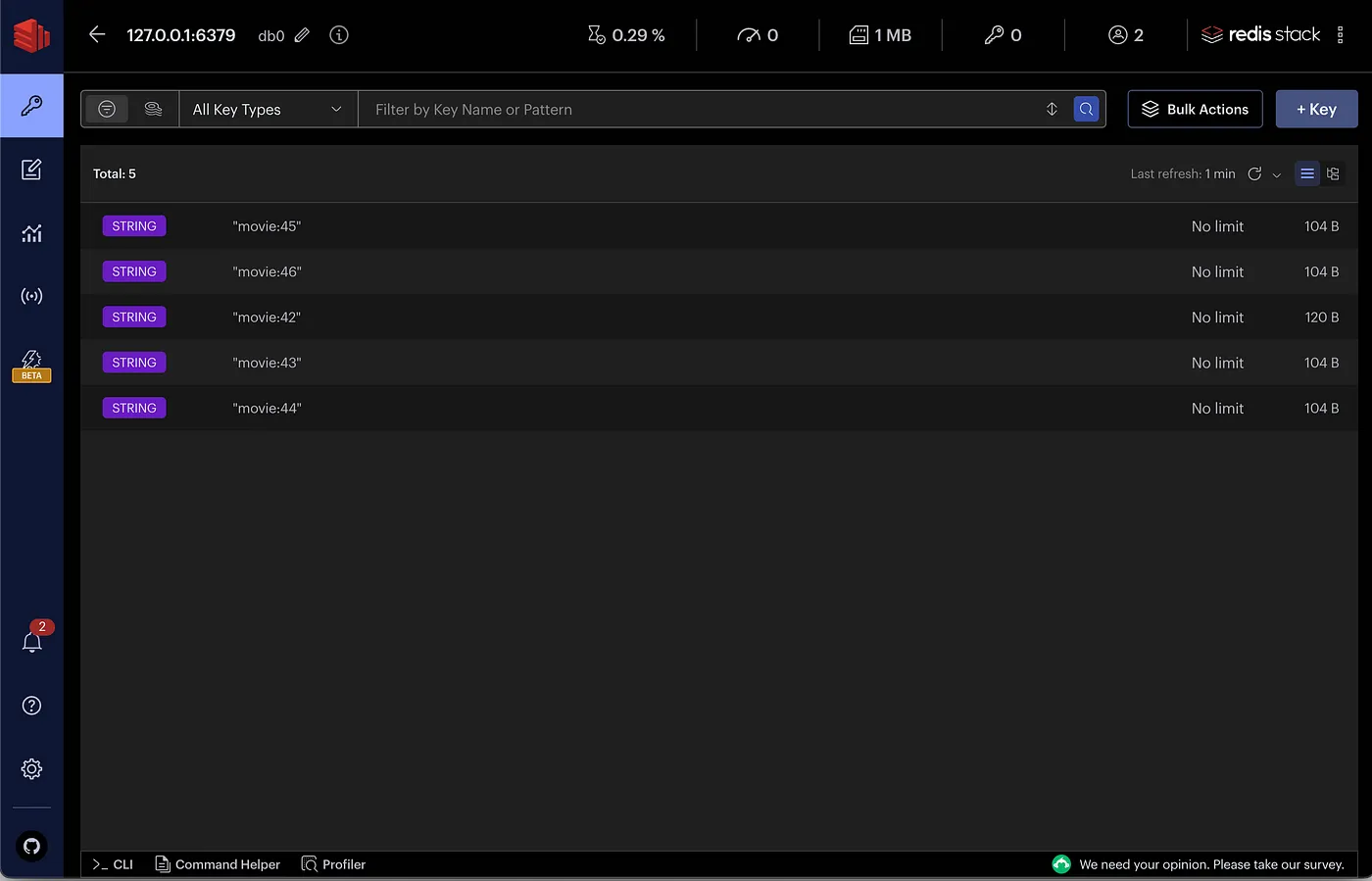

Now that our cache is filled, the next findAll will be based on it.

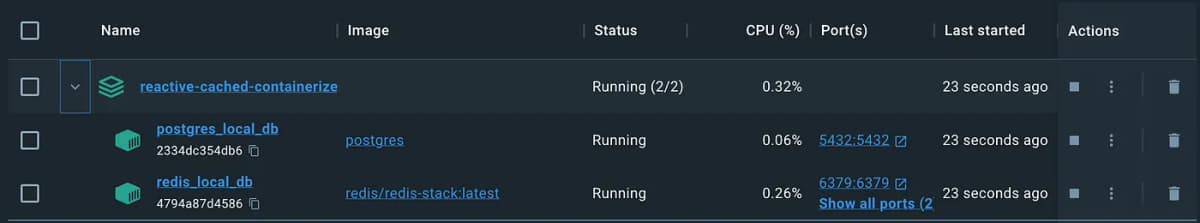

The Spring’s Docker support is the reason why the databases services are running at the same time with the movie service.

SpringReactiveRedisDocker

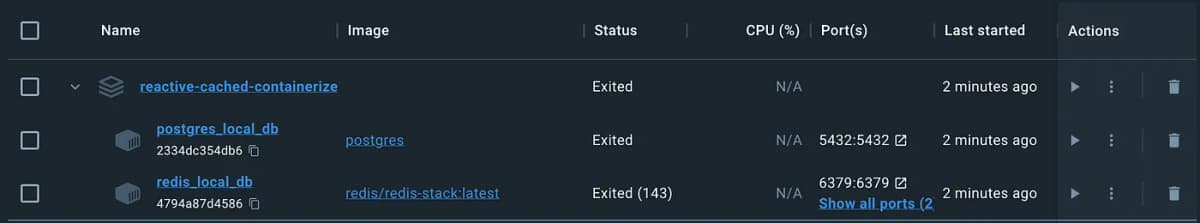

Once the app is terminated, all the related services will be terminated as well.

SpringReactiveRedisDocker

Finally

This proof of concept acts as a stepping stone, giving an idea of the enormous potential that may be realised by fully using these cutting-edge technologies. Although the present POC has a constrained scope, its goal is to illustrate the fundamental ideas and skills that may be expanded upon and enhanced.

Hands on Reactive Spring with Redis Cache and Docker support

Elattar Saad

Mon, 28th August 2023

4 min read

Read on Medium

#spring #spring reactive #docker #PostgreSQL #webflux

The concept of reactive programming enables more responsive and scalable programmes by handling asynchronous data streams.

Project Reactor by Spring is a completely non-blocking foundation with built-in back-pressure support.

It serves as the structural core of the Spring ecosystem’s reactive stack and is included into initiatives like Spring WebFlux, Spring Data, and Spring Cloud Gateway.

In this app we will be using:

Java version 17.
Spring Boot version 3.1.2.

And the following dependencies:

Continuing with the movie theme from previous articles, we start by developing our data model.

Note: Although I’m using records, you are still welcome to utilise classes if you’d like.

Next, let’s build our reactive repository:

Now, let’s create our service:

To better understand how to use the Mono and Flux publishers, I suggest reading this insightful article.

It’s time to create our movie rest controller:

Then, we need a starting script to persist a set of movies in our database. You can use the script in the main class or any configuration class.

Note: The save operation won’t populate our cache, only the findAll will.

As the next part of this demo, some configurations need to take place:

Redis configuration:

we need a reactive Redis template to persist our movies:

Postgres database configuration:

In the resource folder, we create a schema.sql file.

The init script is used at the startup in order to create a table for our movies.

Docker compose configuration:

In our compose.yaml file, we define our databases’ services.

Now that we’ve finished building our reactive cached endpoint, let’s put it to use:

SpringReactiveRedisDocker

Our cache is empty, let’s run the findAll op to fill it up with movies from the PostgreSQL database:

SpringReactiveRedisDocker

The findAll is successfully returning the list of persisted movies. Let’s check our cache:

SpringReactiveRedisDocker

Now that our cache is filled, the next findAll will be based on it.

The Spring’s Docker support is the reason why the databases services are running at the same time with the movie service.

SpringReactiveRedisDocker

Once the app is terminated, all the related services will be terminated as well.

SpringReactiveRedisDocker

Finally

<dependencies>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-data-r2dbc</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-data-redis-reactive</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-webflux</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-docker-compose</artifactId>
   <scope>runtime</scope>
   <optional>true</optional>
  </dependency>
  <dependency>
   <groupId>org.postgresql</groupId>
   <artifactId>postgresql</artifactId>
   <scope>runtime</scope>
  </dependency>
  <dependency>
   <groupId>org.postgresql</groupId>
   <artifactId>r2dbc-postgresql</artifactId>
   <scope>runtime</scope>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-test</artifactId>
   <scope>test</scope>
  </dependency>
  <dependency>
   <groupId>io.projectreactor</groupId>
   <artifactId>reactor-test</artifactId>
   <scope>test</scope>
  </dependency>
 </dependencies>

Movie.java

import org.springframework.data.relational.core.mapping.Table;

@Table("movies")
public record Movie(Long id, String title) {}

MovieRepository.java

import org.springframework.data.repository.reactive.ReactiveCrudRepository;

public interface MovieRepository extends ReactiveCrudRepository<Movie, Long> {}

MovieService.java

import org.springframework.data.redis.core.ReactiveRedisTemplate;
import org.springframework.stereotype.Service;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

@Service
public class MovieService {

    private final MovieRepository movieRepository;
    private final ReactiveRedisTemplate<String, Movie> reactiveRedisTemplate;

    public MovieService(MovieRepository movieRepository, ReactiveRedisTemplate<String, Movie> reactiveRedisTemplate) {
        this.movieRepository = movieRepository;
        this.reactiveRedisTemplate = reactiveRedisTemplate;
    }

    public Mono<Movie> save(Movie movie) {
        return movieRepository.save(movie);
    }

    public Flux<Movie> findAll() {
        return reactiveRedisTemplate.keys("movie:*")
                // Fetching cached movies.
                .flatMap(key -> reactiveRedisTemplate.opsForValue().get(key))
                // If cache is empty, fetch the database for movies
                .switchIfEmpty(movieRepository.findAll()
                        // Persisting the fetched movies in the cache.
                        .flatMap(movie ->
                                reactiveRedisTemplate
                                        .opsForValue()
                                        .set("movie:" + movie.id(), movie)
                        )
                        // Fetching the movies from the updated cache.
                        .thenMany(reactiveRedisTemplate
                                .keys("movie:*")
                                .flatMap(key -> reactiveRedisTemplate.opsForValue().get(key))
                        )
                );
    }
}

MovieController.java

import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.*;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;

@RestController
@RequestMapping("/movies")
public record MovieController(MovieService service) {

    @GetMapping
    public Flux<Movie> findAll() {
        return service.findAll();
    }

    @PostMapping
    @ResponseStatus(HttpStatus.CREATED)
    public Mono<Movie> save(@RequestBody Movie movie) {
        return service.save(movie);
    }
}

@Bean
public ApplicationRunner saveMovies(MovieRepository repository) {
    Flux<Movie> movies = Flux.just(
          new Movie(null, "Catch me if you can"),
          new Movie(null, "Interstellar"),
          new Movie(null, "Fight Club"),
          new Movie(null, "Creed"),
          new Movie(null, "The Godfather")
    );
    return args -> repository.deleteAll()
          .thenMany(repository.saveAll(movies))
          .subscribe(System.out::println);
}

RedisConfiguration.java

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.ReactiveRedisConnectionFactory;
import org.springframework.data.redis.core.ReactiveRedisTemplate;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.RedisSerializationContext;

@Configuration
public class RedisConfiguration {
    @Bean
    public ReactiveRedisTemplate<String, Movie> reactiveRedisTemplate(ReactiveRedisConnectionFactory factory) {
        Jackson2JsonRedisSerializer<Movie> serializer = new Jackson2JsonRedisSerializer<>(Movie.class);
        RedisSerializationContext.RedisSerializationContextBuilder<String, Movie> builder =RedisSerializationContext.newSerializationContext(new Jackson2JsonRedisSerializer<>(String.class));
        RedisSerializationContext<String, Movie> context = builder.value(serializer).build();
        return new ReactiveRedisTemplate<>(factory, context);
    }
}

schema.sql

CREATE TABLE IF NOT EXISTS movies (
    id SERIAL PRIMARY KEY,
    title VARCHAR(30) NOT NULL
);

application.yaml

spring:
  sql:
    init:
      schema-locations: classpath:schema.sql
      mode: always

compose.yaml

services:
  postgres:
    container_name: postgres_local_db
    image: postgres
    environment:
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: postgres
      POSTGRES_DB: moviesDB
    ports:
      - "5432:5432"
    volumes:
      - local_dev:/var/lib/postgresql/data
  redis:
    container_name: redis_local_db
    image: "redis/redis-stack:latest"
    ports:
      - "6379:6379"
      - "8001:8001"
    environment:
      - REDIS_REPLICATION_MODE=master
volumes:
   local_dev:
